Electric Heat Tracers

Electric Heat Tracers
Electric Heat Tracers
Product Code : 15
Brand Name : Economy Heaters
Product Description

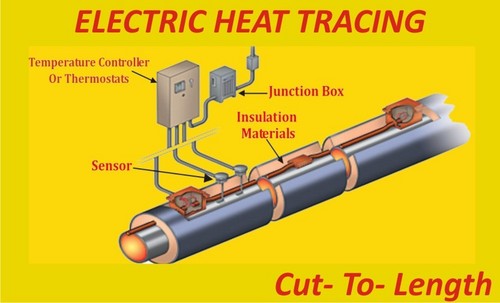

In order to fulfill the variegated needs of our clients, we offer Electric Heat Tracers in varied specifications. All the tracers offered by us consist of temperature controllers and sensors for sensing and maintaining high heat. These tracers are widely appreciated by our valuable patrons for their outstanding attributes such as easy operations, durable standards and longer functional life. Furthermore, these Electric Heat Tracers work on the simple principle of thermostatic control of temperature.



CHARACTERISTICS

  • Strong but flexible construction
  • Cut to length at site, no wastage
  • Integrated cold end, without joints
TYPES AND APPLICATIONS
Version with silicon insulation, usable for process temperatures up to 150oC (Max. surface temperature of cable 200oC). Options: Tinned copper or stainless steel braid.

PRINCIPLE
A resistance wire is spiraled around two insulated bus bars. This resistance wire is in electrical contact with the bus bars at regular intervals called contact points (one of the conductors is stripped on some mm). An outside jacket insures the electrical insulation. The parallel power connection results in a series of constant wattage heating zones. The constant power cable can be cut to any length. A thermostat must control the temperature.

ANCILLARIES
  • Economy offers a full range of mounting ancillaries, termination
  • kits, electrical junction boxes and thermostants.

Power Constructors

Stripe Copper 2 mm

Conductor Insulation

Silicone Rubber

Power Constructors

Nickel Chromium Resistance Wire

Insulation

Silicone Rubber

Metallic Braid(option)

Tinned copper or Stainless Steel

Nominal Voltage

230V(others on Request)

Nominal Output

20,30 or 40 W/m

Nominal Output(w/m)

Distance Between Contact Point(m)

Maximum Circuit Length(m)

Usable for Process Temperatures up to (appox).FTSH

20

0.7

100

150oC

30

0.7

100

140oC

40

0.6

100

120oC

Economy electric heat tracing cables are ideal over steam or hot oil tracing. Unlike hot oil or steam, electric heating cables are fast and easy to install. They require minimal maintenance and alleviate concerns of leaking oils or steam freeze ups. In addition, electric trace provides valuable control accuracy and reliability.

Economy supplies two different types of heating cables for various applications. Constant Wattage and Mineral Insulated. Each type has it's own special characteristics. We can help select the cable that is most suitable for your application.
